Waldent BLZ IntraVue 900 Ai Intraoral Scanner

Fast and accurate intraoral scanning with AI-powered imaging
Produces 3D digital impressions for CAD/CAM restorations
Lightweight handpiece for easy and comfortable handling
Automatic calibration for consistent scanning accuracy
Supports real-time visualization of scanned areas
Compact cradle design with stable USB 3.0 connectivit
100 times autoclavable

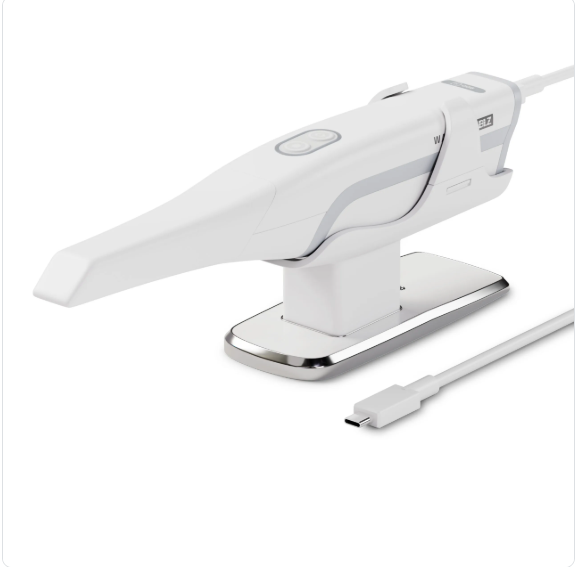

Waldent BLZ IntraVue 900 Ai Intraoral Scanner is a state-of-the-art optical 3D imaging device designed for fast, accurate, and AI-powered intraoral scanning. It captures high-resolution digital impressions of teeth, gums, and soft and hard tissues for CAD/CAM-based restorations. Its ergonomic handpiece and AI-assisted software deliver seamless scanning, even in difficult intraoral regions. With a lightweight design, auto-calibration system, the scanner ensures accuracy, efficiency, and hygiene.

Key Specifications

Model Name: IntraVue 900 AI
Scanning Technology: Optical 3D imaging
Scan Window Size: 15.5 × 17 mm
Scanner Size: 264.5 × 38 × 46.5 mm
Cradle Size: 132 × 64 × 72 mm
Handpiece Weight: 260 g
Cradle Weight: 540 g
Power Input: 12V, 2.0A DC
Electrical Classification: Class II, non-AP/APG
Software Compatibility: BLZ IntraoralScan
Scanning Performance

Scanning Speed: < 30 sec per arch
Scanning Accuracy: ±20 μm precision
Field of View: 16 × 12 mm
Depth of Field: 25 mm
Output Formats: STL / OBJ / PLY
Image Sensor: Dual high-resolution cameras
Calibration Tool: 1 piece included
System Requirements

Operating System: Windows 10 (64-bit) or higher
Processor: Intel Core i5 (11th Gen) or above
Graphics Card: NVIDIA RTX 3060, 6GB or higher
RAM: Minimum 16 GB
Storage: 512 GB SSD or above
USB Ports: 2 × USB 3.0 minimum
Operating Conditions

Temperature Range: 10°C – 30°C
Humidity Range: 10% – 85% RH
Air Pressure: 70 kPa – 106 kPa
Storage & Transportation
Temperature Range: -25°C – 60°C
Humidity Range: 10% – 85% RH
Air Pressure: 70 kPa – 106 kPa
Electromagnetic Compatibility (EMC)

Electrostatic Discharge: ±8 kV contact / ±15 kV air
Electrical Fast Transients: +2 kV at 100 kHz
Surge Protection: ±0.5 kV / ±1 kV line-to-line
RF Conducted Disturbance: 3V (0.15–80 MHz), 6V ISM bands
Voltage Dips: 0% UT (0.5–1 cycle), 70% UT (25/30 cycle)
Voltage Interruptions: 0% UT (250/300 cycle)
Connectivity & Interface

USB Interface: Type-C & USB 3.0 Type-A
Data Transfer: Real-time USB 3.0
Indicator Light: Blue (power on), Green (ready to scan)

Waldent BLZ IntraVue 900 Ai Intraoral Scanner

1 x Handpiece
1 x Scanner Cradle
5 x Tip
1 x Calibration Tool
1 x Data Cable 1 (Type C to Type C)
1 x Data Cable 2 (USB3.0 to TypeA)
