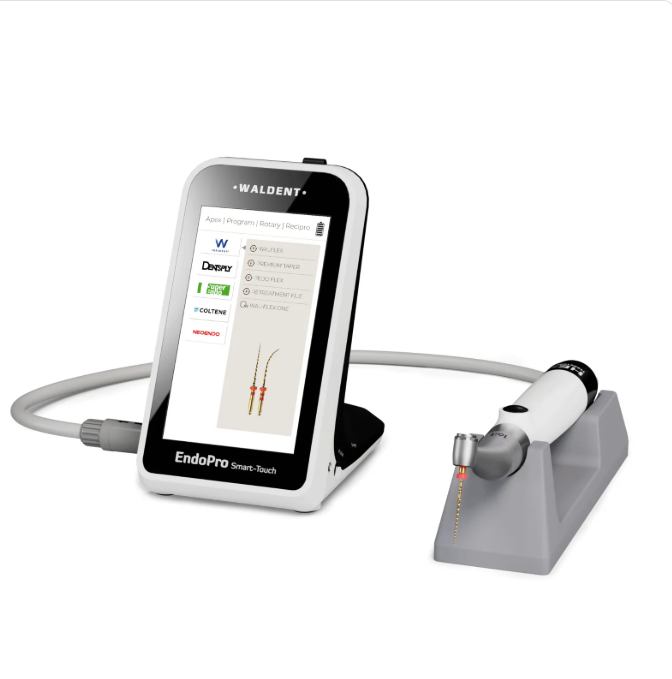

Waldent EndoPro Smart Touch Endomotor With Integrated Apex Locator

Turn on the main unit, the screen shows the file system or parameters automatically. With memory function the instrument will automatically shut down after 4 minutes without operation. Click the menu bar at the top of the screen to enter each interface to select operations Click "Program ", for entering user-defined parameters settings. Click the blue button "Θ " to self-define and store 9 programs, click the "UP "and "DOWN "keys to change the setting and parameters, and click " FWD " to select 4 file working modes. If the "Apex " icon is "OFF " it means the instrument enters root canal enlargement function; and when the "Apex " icon is "ON " it means both length-measurement and enlargement When using the function of the combination of ENDO enlargement with apex locator, the motor speed will decelerate automatically and faster beeps would be heard when near the apical zone, the motor will automatically set in the auto reverse mode A) Speed setting: Speed is from 150rpm to 1000rpm B) Torque setting: Torque is from 0.6N.cm to 4.6N.cm Notice: If use the function of combination ENDO enlargement with apex locator, the contra-angle must be covered by the rubber case. Click "FILE SYSTEM " to select different built-in file systems. After selecting the corresponding brand file, click "FWD" to select 4 different file working modes. If the "Apex" icon is "OFF "，it means the instrument enters root canal enlargement function; and when the "Apex" icon is "ON"，it means both length-measurement and enlargement. Insert the single head measuring wire plug into the measuring hole at the bottom of the handle, insert the lip hook into the hole of the single head measuring wire, and insert the endodontic file into the contra angle head Turn the apex mode on and press the handIe button to make the motor work. Use the bending head of the lip hook on the single head measuring wire to contact the metal shaft of the part of the file The screen should display ’--" and reach the apical area, accompanied by a quick beep. This means it can both measure root canal length and also enlarge the canal in this mode Click the "HOME " button in the lower right corner of the screen and then click "CALIBRATION " to enter the automatic calibration, which is used when changing the contra-angle Click the "HOME " button in the lower right corner of the screen, and then click " RESET " to restore factory settings. Click the "HOME " button in the lower right corner of the screen, then click "GUIDE TO USE" to enter the user guide, and press the "Quit" button to exit.

4.25” Touch screen Neat interface; Easily operable as your smartphone. Intelligent chip The smart chip ensures the stable output of torque and speed and accuracy of apex measurement up to 98.3%. Integrated Contra-angle The integrated structure ensures stable and low-noise operation of rotary files. 9 Files Programs + File system pre-built Large memory, Set or Choose the files program as you want

1 x Contra Angle 1 x Handpiece 1 x Main Unit 1 x Adapter 1 x Measuring Wire 1 x Single Head Measuring Wire 2 x File Clip 2 x Lip Hook 2 x Touch Probe 3 x Silicone sleeves 1 x Handpiece Base
