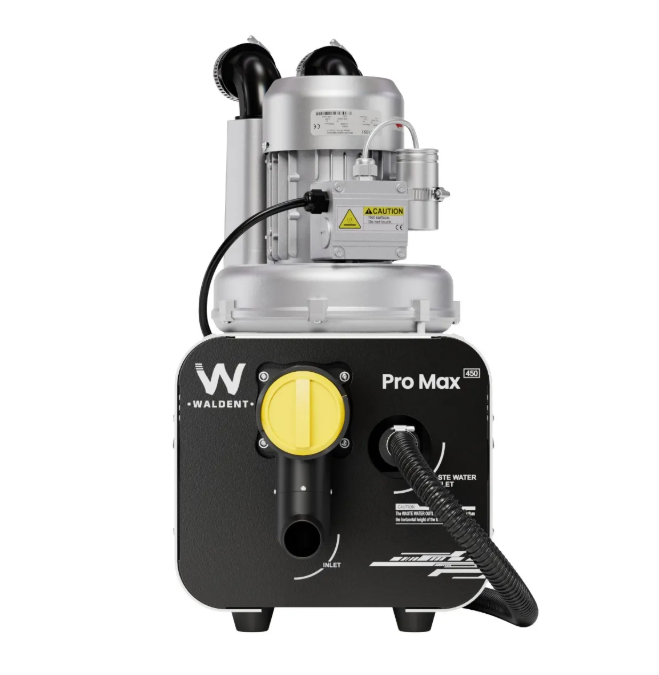

Waldent ProMax 450 Dental Suction Unit

Installation & Setup Site Requirements: Pressure Pipeline: Install a corrosion-resistant pipeline with a maximum pressure of 25 kPa and a diameter of 40 mm (ID40). If the main pipeline is 32 mm (De32), use a direct drive pipe for De32 at the connection end. Drainage: Ensure the installation area has a floor drain or connects to sewage treatment equipment. The outfall should be at least 200 mm higher than the local drainpipe port. Ground Stability: Place the unit on a steady surface with a gradient no greater than 3 degrees. Connecting Hoses: Air Inlet Hose: Remove the yellow protective seal from the motor's air inlet. Insert the internal recycle hose into the air inlet tube and secure it with a metal hose clamp. Inlet Hose: Connect the pre-placed load-pressure tube to the product inlet using the inlet hose and metal hose clamp. Exhaust Hose: Remove the yellow cover from the exhaust port. Attach the exhaust hose and guide the air to the wall exhaust hole or pre-placed exhaust pipe. Ensure the hose can withstand temperatures above 90°C. Drain Hose: Connect one end of the drain hose to the local drainpipe port or sewage treatment equipment using a metal hose clamp. Signal Connection: Connect the signal wire of the suction unit to the pre-placed signal wire of the selector valve in the dental unit. Operating Instructions Power On: Connect the unit to the power grid using the attached power cord. Turn on the green power switch at the back of the unit; the power indicator will light up, indicating the unit is in standby mode. Activate Suction: Remove the strong/weak suction hand shank from its holder on the dental unit. The suction unit will start running. Adjust the suction strength using the switch on the hand shank to achieve the desired suction level. Return to Standby: Place the hand shank back into its slot on the dental unit. The suction unit will return to standby mode.

Powerful Suction Equipped with a high-performance motor for efficient and continuous suction, ensuring optimal fluid removal during procedures Quiet Operation Noise reduction technology provides a quieter working environment, reducing disruptions in the dental office Compact Design Space-saving and compact, making it easy to integrate into various dental setups without taking up excess space Advanced Filtration Features advanced filtration to prevent contamination and ensure clean and safe suction Durable Construction Built with high-quality materials for long-lasting durability and reliability User-Friendly Controls Simple and intuitive controls for easy operation during dental treatments Efficient Waste Management Designed for efficient waste collection, reducing the need for frequent maintenance Versatile Use Ideal for general dental procedures, including cleanings, restorative treatments, and surgeries

1 x Promax 450 1 x Inlet hose De40*1.2M 1 x Exhaust hose OD 43*1.8M 1 x Power cable 1 x Hose clamp 16~25 2 x Hose clamp 27~51 3 x Hose clamp 40~63 1 x Product manual

1.Service and Warranty are handled by the manufacturer/importer directly for this product 2. Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and meddent.in may assist the customer in registering a request to get the Product replaced or serviced. 3.meddent.in will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer 4.The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
