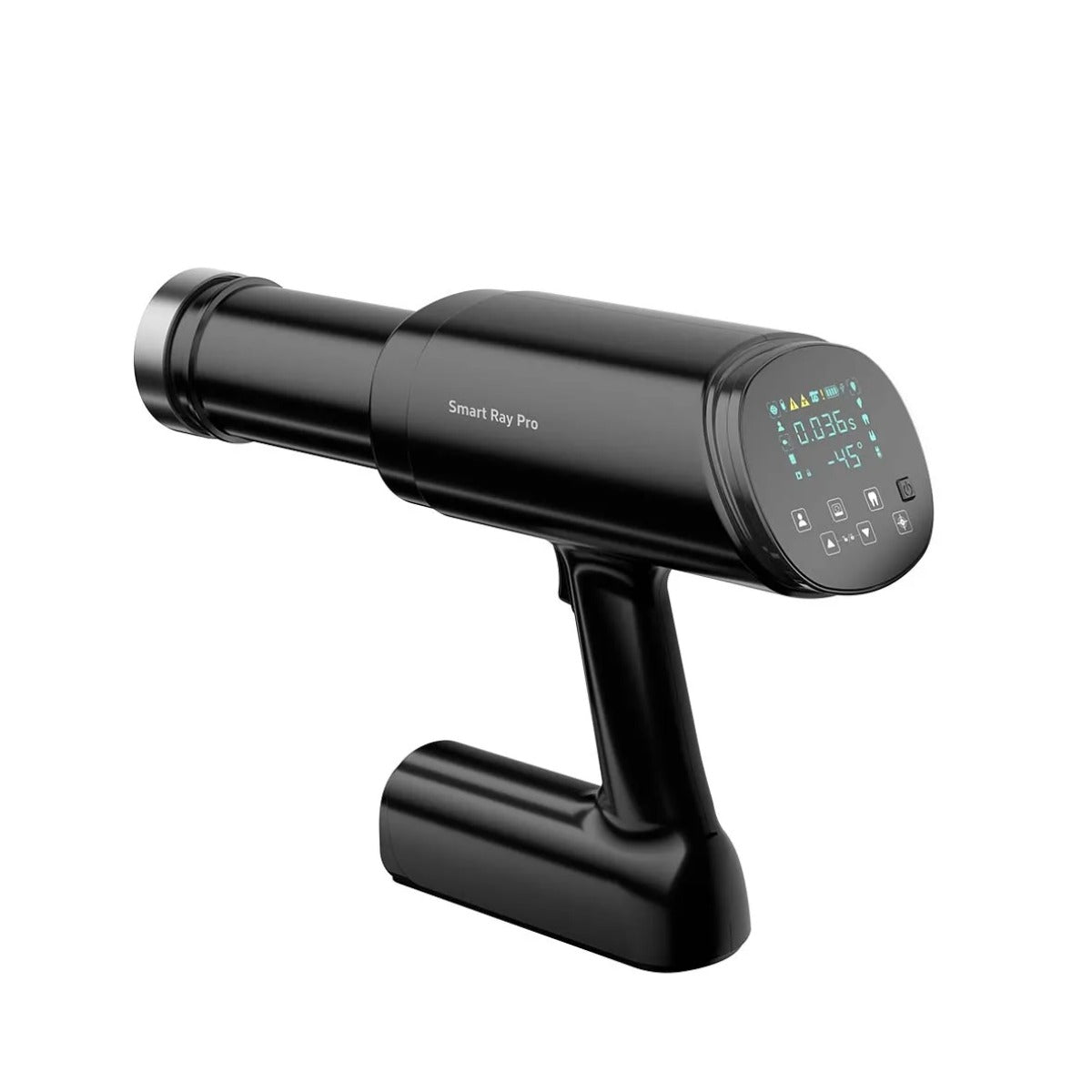

Waldent RTA Smart Ray Pro Portable DC Xray Machine By Woodpecker

Preparation Ensure the device is fully charged or connected to a power source using the provided adapter. Verify that all components, such as the X-ray tube, exposure handbrake, and beam-limiting device, are properly installed. Set up the machine in a clean, dry environment within the recommended operating temperature (10°C to 40°C). Patient Positioning Position the patient comfortably in the dental chair. Align the device's beam-limiting equipment to focus on the target area of the patient’s mouth. Device Settings Select the desired exposure time from the adjustable range (0.02s to 2s) based on clinical requirements. Double-check the alignment of the device with the target area. Taking an X-Ray Press and hold the exposure handbrake to initiate the X-ray. Follow all safety precautions to minimize radiation exposure, especially for the patient and operator. Post-Procedure Turn off the device after use to conserve battery life. Review the captured X-ray images for accuracy. Clean and store the device in a safe, dry location, maintaining recommended storage conditions (-20°C to 55°C). Safety Precautions Avoid prolonged exposure to radiation, especially for pregnant women and young children. Do not use the device near flammable anesthetics or in environments with excessive humidity. Follow all manufacturer guidelines and local regulations for safe operation.

Compact and Lightweight Design: Weighs only 2.2 kg, ensuring portability and ease of use. Low Radiation Emission: Delivers safe and efficient X-ray imaging with minimal exposure to radiation. Advanced Imaging Technology: Fixed tube voltage of 65kV and tube current of 2.5mA for precise and reliable results. Adjustable Exposure Time: Exposure time range from 0.02s to 2s, catering to various clinical needs. User-Friendly Interface: Equipped with Smart Ray Pro V1 software for intuitive operation and enhanced efficiency. Durable Build: High-quality materials and design ensure reliability in various operating conditions. Versatile Application: Suitable for a wide range of dental diagnostic purposes in clinical settings.

1 x RTA Smart Ray Pro Portable DC Xray Machine 1 x Adapter 1 x Exposure handbrake 1 x Beam limiting cylinder 1 x Hand brake connecting cable

1.Service and Warranty are handled by the manufacturer/importer directly for this product 2. Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and meddent.in may assist the customer in registering a request to get the Product replaced or serviced. 3.meddent.in will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer 4.The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
