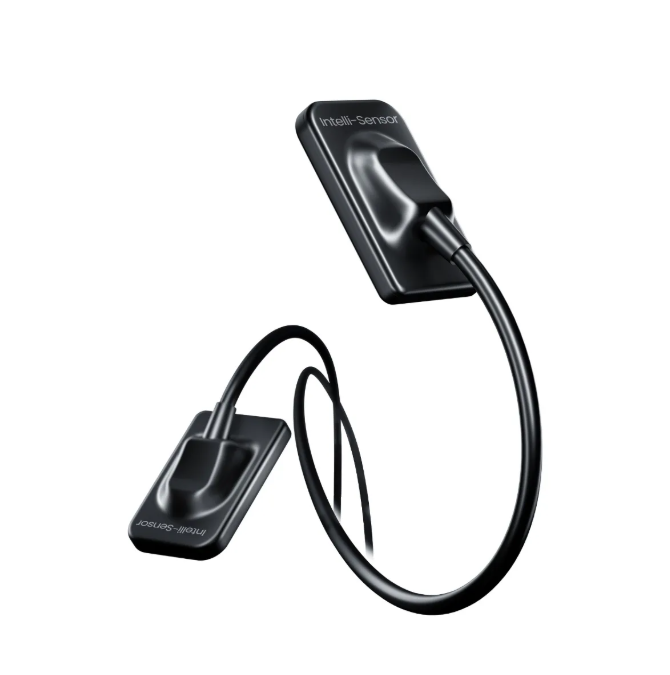

Woodpecker RTA Intelli-Sensor RVG By Waldent Size - 1.5

Here are the directions for using the Waldent RTA Intelli - Sensor RVG: System Setup: Ensure that the computer meets the specified configuration requirements, including the operating system, processor, memory, USB ports, display board, USB chip, and display resolution. Software Link: Click Here To Download Waldent RTA Intelli - Sensor RVG Software Run the "Ai-Dental setup.exe" installation program and follow the on-screen instructions to install the image management software system. Sensor Installation: Fix the sensor support frame on a flat wall using two screws. When the sensor is not in use, secure it on the support frame. Imaging Process: Turn on the PC with the installed image processing software. Start the matching X-ray generator and set the desired photographing parameters. Put on a disposable protective sheath on the sensor. Place the sensor in the patient's mouth parallel to the long axis of the teeth, ensuring the effective surface of the sensor is close to the teeth. X-ray Capture: Move the X-ray generator to the patient's head, ensuring the generator cone is perpendicular to the sensor's position. Press the generator switch to capture the X-ray image. After exposure, the imaging software downloads the X-ray image for display on the screen. Sensor Protective Sheath Usage: Wear gloves when placing the disposable sensor protective sheath. Replace the protective sheath after each use and dispose of it with other potentially infectious waste. Store the used sheaths in a dry and clean place.

High-resolution imaging - 25lp/mm theoretical resolution C Mos Technology Thinnest sensor 4.5mm USB cable - 2.7m Durable and reliable: 80000+ bending test & IP68 protection rating Smart and powerful software Curved Edges to Avoid Patient Injury Highly Flexible Cable

1 x RTA Intelli-Sensor 1 x Disposable protective Sleeves 1 x Sensor fixer 1 x Sensor Silicone Sleeve 1 x U disk 2 x Fixing screw 2 x Rubber Stopper 1 x Qualified certificate 1 x Warranty card 1 x Packaging list 1 x Instruction manual
